Packing is a consumable component in every frac pump fluid end, and how it wears depends largely on maintenance practices. If issues such as leaks, improper lubrication, or plunger wear are left unchecked, they can quickly escalate into failures that shorten packing life and increase downtime. Recognizing the difference between normal wear and true failure, along with knowing how to prevent it, helps operators get the most out of every packing set.
Learn how to:
The following are the most common causes of premature packing failure, what each looks like in the field, and how to prevent them before they lead to costly downtime.
A small drip at the packing that cuts a channel through the rings is the first sign of jetting. What seems minor can quickly carve a path and turn into a fluid end wash, where damage happens rapidly and often beyond repair.
Prevention Tip:
If you see a drip, tighten the packing nut immediately. If the leak continues after tightening, replace the packing set.
Scorched packing often appears blackened, hardened, or brittle. This occurs when lubrication is insufficient, allowing friction and heat to build around the plunger until the packing wears out prematurely.
Prevention Tip: Regularly check the lubrication system reservoir, check valves, and lube lines. Confirm that packing lubrication is reaching every packing bore.
Improper torque shows up in two ways. If the nut is too loose, the rings separate and debris works into the gaps. If it is too tight, the packing compresses excessively, creating shiny wear bands from increased friction against the plunger. Both conditions accelerate wear.

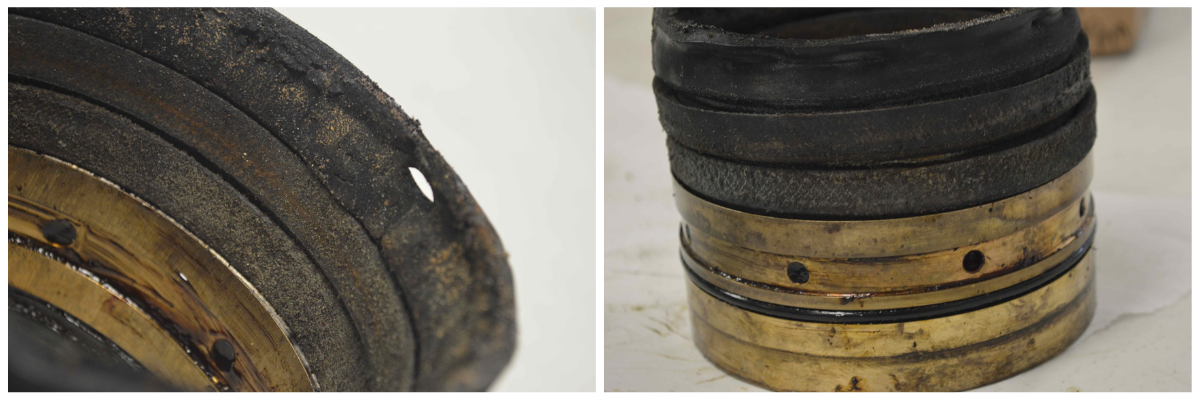

Example of damage caused as a result of over-tightening the packing nut.
Prevention Tip: Apply only the correct torque. The packing nut should be snug enough to keep the stack engaged without overenergizing it.
Signs of bore wear include debris collecting on the outside of the lantern ring and visible erosion marks on the bore wall. This happens when fluid bypasses the packing, gradually washing the bore and reducing its ability to seal properly.
Prevention Tip: During inspections, check where debris collects. If it appears outside the lantern ring, repair bore wash before installing new packing.
A new plunger has a smooth, shiny finish. Over time, the surface becomes hazy. If deep grooves or pitting develop, those rough spots create an abrasive surface that accelerates wear on every packing ring.

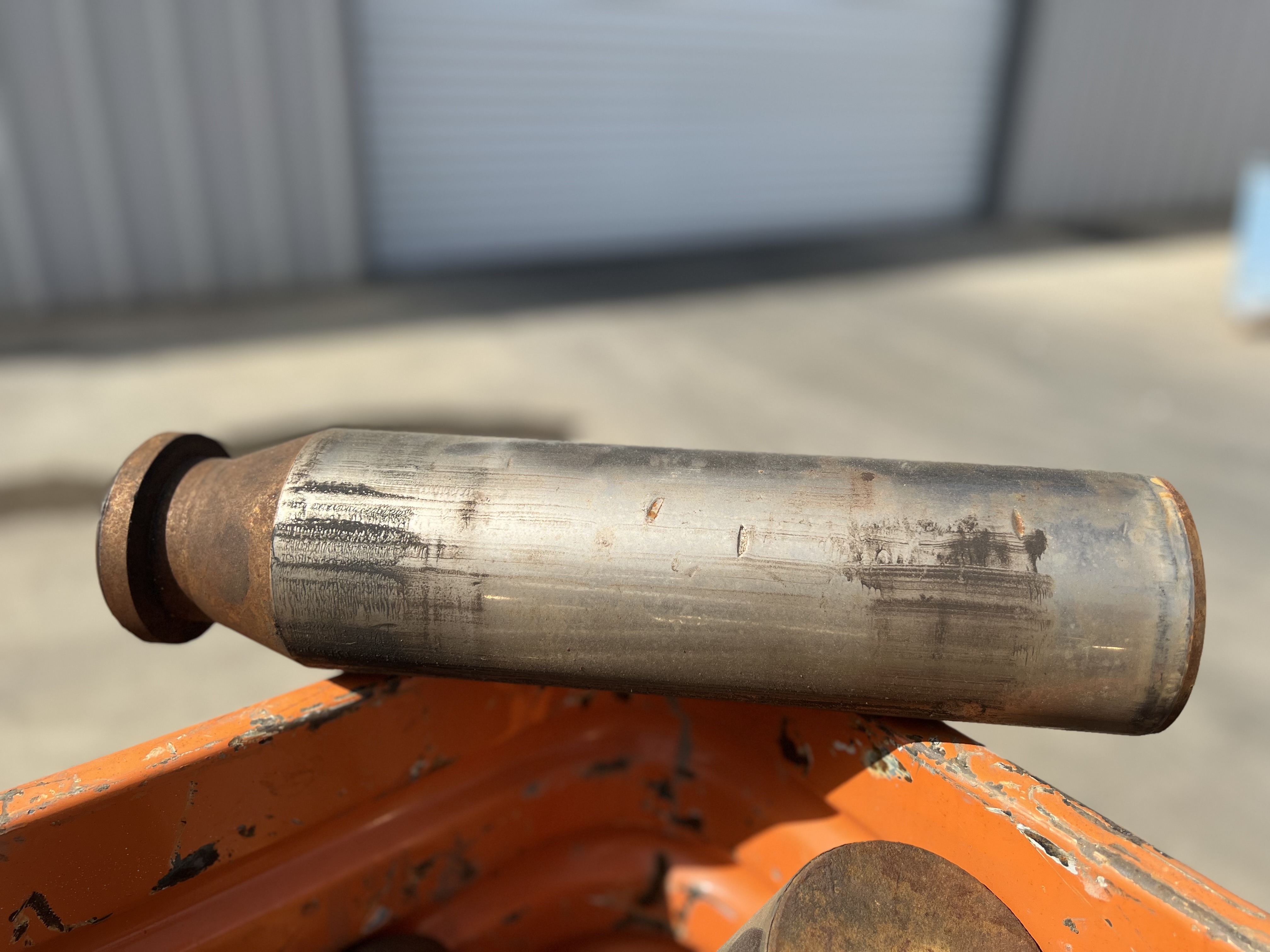

Example of a worn-out plunger.
Prevention Tip: Inspect plungers during every maintenance cycle. Replace any plunger with grooves or pitting before installing new packing.
The type of lubricant affects how debris interacts with the packing. Grease tends to trap sand and grit, spreading it across the rings and forming an abrasive slurry. Oil flows more freely, flushing debris into the lantern ring and away from sealing surfaces.

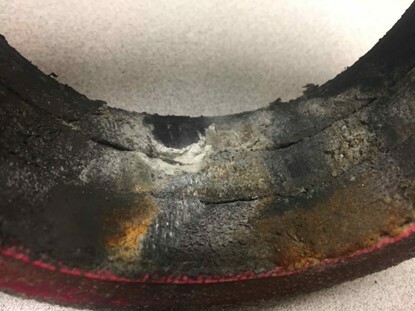

Example of packing failure due to loss of lubrication.
Prevention Tip: Use oil lubrication where possible. Air-over-oil systems are effective because they automatically adjust flow with pump speed. If using grease systems, adjust the setting with pump rate to supply enough lubrication.
A clogged or backwards check valve may still hold pressure in the system, but it prevents lubrication from reaching the packing. Without an oil film on the rings, the bore runs dry, leading to rapid overheating and wear.
Prevention Tip: Confirm that lubrication lines are clear and check valves are installed correctly. Replace or clean valves that are clogged or improperly oriented.
Not every change in packing signals a problem. Gradual changes, such as shorter ring height or uneven wear at certain points, are expected over time. Recognizing the difference between normal wear and true failure helps determine when to keep running and when replacement is needed.
With proper maintenance, packing naturally shortens as the pressure rings lose material from the reciprocating motion of the plunger. It’s also common to see more wear at the 6 o’clock position of the lantern and pressure rings, caused by the weight of the plunger. This unevenness develops gradually and is considered normal.
To maintain performance, tighten the packing nut every few stages to account for material loss. Consistent adjustments keep the stack engaged and extend packing life
Watch this video for critical configuration tips, including stack height, junk ring sizing, wiper seal placement, and more, to help you ensure a perfect fit for your specific fluid end.
Recognizing early signs of failure and applying proven maintenance practices keeps your pumps running efficiently and protects the fluid end from costly damage. With the right approach, you can maximize reliability, minimize unplanned maintenance, and extend the life of every Redline+ Packing set.
